基于Laennec膜的肝蒂CT三维重建及肝蒂鞘外分离阻闭钳的研发与验证

林治宇; 夏鑫; 雷寰; 罗豫川; 程龙; 梁鸿寅; 汪涛

doi:10.12449/JCH251023

基于Laennec膜的肝蒂CT三维重建及肝蒂鞘外分离阻闭钳的研发与验证

DOI: 10.12449/JCH251023

林治宇^{1, 3},
夏鑫^{1, 3},
雷寰^{2, 3},
罗豫川³,
程龙³,
梁鸿寅³,
汪涛^{2, 3, , ,}

1.
西南医科大学临床医学院肝胆外科，四川泸州 646000
2.
西南医科大学研究生院，四川泸州 646000
3.
中国人民解放军西部战区总医院肝胆外科，成都 610083

基金项目:

中国人民解放军西部战区总医院院管项目 (41C4168C)

伦理学声明：本研究方案于2024年1月15日经由中国人民解放军西部战区总医院伦理委员会批准，批号为2023EC5-ky005。

利益冲突声明：本文不存在任何利益冲突。

作者贡献声明：林治宇负责实验设计，资料分析，撰写论文；夏鑫负责数据管理，撰写论文；雷寰负责撰写论文；罗豫川负责收集数据；程龙负责手术操作和器械设计；梁鸿寅负责拟定写作思路，指导撰写文章；汪涛负责课题设计，最后定稿。

详细信息

通信作者:
汪涛， watopo@163.com （ORCID： 0000-0002-0005-0994）

计量
- 文章访问数: 44
- HTML全文浏览量: 25
- PDF下载量: 6
- 被引次数: 0
出版历程
- 收稿日期: 2025-03-01
- 录用日期: 2025-05-19
- 出版日期: 2025-10-25

Three-dimensional CT reconstruction of the hepatic pedicle based on the Laennec’s capsule and the development and validation of extra-sheath dissection/occlusion clamp

Zhiyu LIN^{1, 3},
Xin XIA^{1, 3},
Huan LEI^{2, 3},
Yuchuan LUO³,
Long CHENG³,
Hongyin LIANG³,
Tao WANG^{2, 3
, ,
,}

1.
Department of Hepatopancreatobiliary Surgery，School of Clinical Medicine Southwest Medical University, Luzhou，Sichuan 646000，China
2.
Graduate School，Southwest Medical University Southwest Medical University，Luzhou，Sichuan 646000，China
3.
Department of Hepatobiliary Surgery，The General Hospital of Western Theater Command，Chengdu 610083，China

Research funding:

The General Hospital of Western Theater Command Management Project (41C4168C)

More Information

Corresponding author: WANG Tao， watopo@163.com （ORCID： 0000-0002-0005-0994）

摘要

摘要: 目的探讨基于Laennec膜的肝蒂三维重建解剖特征，及其在鞘外分离阻闭钳研发和精准肝切除中的应用价值。方法回顾性分析2021年1月—2024年6月中国人民解放军西部战区总医院100例无肝蒂解剖异常患者的腹部增强CT资料，采用Hisense CAS系统结合3D U-net深度学习算法进行Laennec膜层面肝蒂三维重建，测量肝蒂主干及分支的长度、外径及角度。基于测量数据研发肝蒂鞘外分离阻闭钳，并纳入30例拟行右半肝切除患者，随机分为器械组（n=15）和对照组（n=15），比较两组肝蒂处理时间、手术时间、术中出血量及胆道损伤发生率。计量资料两组间比较采用成组t检验，计数资料两组间比较采用Fisher精确检验。结果三维重建显示肝蒂主干分支存在4种变异，其中Ⅰ型（左右分支型）占88%（88/100），Ⅱ型（三叉分支型）占5%（5/100），Ⅲ型（右前型）占5%（5/100），Ⅳ型（特殊型）占2%（2/100）。主肝蒂外径（24.10±6.16） mm，左支主干长度（20.59±6.38） mm，右支主干长度（21.99±7.98） mm。器械组肝蒂处理时间［（14.10±1.30） min vs （17.50±2.00） min， t=-5.620， P=0.001］及手术时间［（217.00±28.28） min vs （241.87±19.49） min， t=-2.804， P=0.009］显著短于对照组。器械组胆道损伤发生率显著低于对照组（0 vs 20%，P=0.031）。结论 Laennec膜三维重建可精准呈现肝蒂解剖变异，基于该数据研发的鞘外分离阻闭钳可优化肝蒂处理流程，提高手术安全性，具有临床推广价值。
- 消化系统外科手术 /
- 成像，三维 /
- Laennec膜 /
- 外科器械
Abstract: Objective To investigate the anatomical features of three-dimensional （3D） reconstruction of the hepatic pedicle based on the Laennec’s capsule， as well as its application value in the development of extra-sheath dissection/occlusion clamp and precise hepatectomy. Methods A retrospective analysis was performed for the abdominal contrast-enhanced CT data of 100 patients without anatomical abnormalities of the hepatic pedicle in The General Hospital of Western Theater Command from January 2021 to June 2024. The Hisense CAS system combined with the 3D U-net deep learning algorithm was used for 3D reconstruction of the hepatic pedicle at the level of Laennec’s capsule， and the hepatic pedicle was measured in terms of the length， outer diameter， and angle of the main trunk and branches. An extra-sheath hepatic pedicle dissection/occlusion clamp was developed based on the above measurements， and a total of 30 patients scheduled for right hemihepatectomy were enrolled and randomly divided into device group and control group， with 15 patients in each group. The two groups were compared in terms of hepatic pedicle handling time， time of operation， intraoperative blood loss， and the incidence rate of bile duct injury. The independent-samples t test was used for comparison of continuous data between two groups， and the Fisher’s exact test was used for comparison of categorical data between two groups. Results The results of 3D reconstruction revealed four variants in the main trunk branches of the hepatic pedicle， with type Ⅰ （left-right branching） accounting for 88% （88/100）， type Ⅱ （trifurcation type） accounting for 5% （5/100）， type Ⅲ （right anterior branching） accounting for 5% （5/100）， and type Ⅳ （special type） accounting for 2% （2/100）. The outer diameter of the main hepatic pedicle was 24.10±6.16 mm， the length of the left main branch was 20.59±6.38 mm， and the length of the right main branch was 21.99±7.98 mm. Compared with the control group， the device group had significantly shorter hepatic pedicle handling time （14.10±1.30 minutes vs 17.50±2.00 minutes， t=-5.620， P=0.001） and time of operation （217.00±28.28 minutes vs 241.87±19.49 minutes， t=-2.804， P=0.009）. The device group had a significantly lower incidence rate of bile duct injury than the control group （0 vs 20%， P=0.031）. Conclusion 3D reconstruction based on the Laennec’s capsule can accurately display the anatomical variations of the hepatic pedicle. The extra-sheath hepatic pedicle dissection/occlusion clamp developed based on such data can optimize the process of hepatic pedicle management and improve surgical safety， and therefore， it holds promise for clinical application.
- Digestive System Surgical Procedures /
- Imaging， Three-Dimensional /
- Laennec’s Membrane /
- Surgical Instruments

HTML全文

注： a，蓝色管道为重建的入肝门静脉系统；b，粉色为肝脏Laennec膜，包括肝脏裸区及肝蒂区，静脉、动脉及胆管均包绕于其中。

图 1 基于Laennec膜的肝蒂分支模式分类

Figure 1. Classification of hepatic pedicle branching patterns based on Laennec’s capsule

下载: 全尺寸图片幻灯片

注： a，定钳头；b，动钳头；c，分离阻闭钳。

图 2 肝蒂鞘外解剖分离阻闭钳设计图

Figure 2. Design drawing of extrahepatic pedide dissection and occlusion clamp

下载: 全尺寸图片幻灯片

注： a，钳夹状态；b，分离状态。

图 3 肝蒂鞘外解剖分离阻闭钳实物图

Figure 3. Physical image of extrahepatic pedicle dissection and occlusion clamp

下载: 全尺寸图片幻灯片

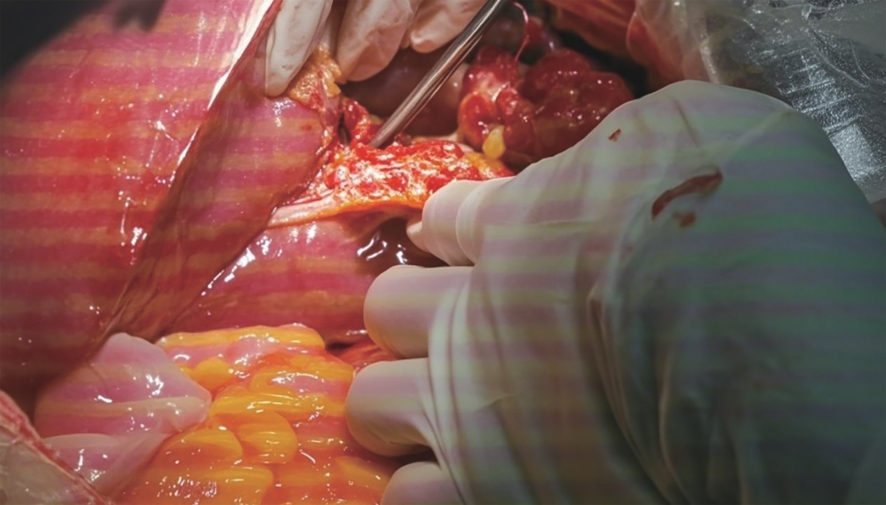

图 4 肝蒂鞘外解剖分离阻闭钳术中使用

Figure 4. Intraoperative use of the extrahepatic pedicle dissection and occlusion clamp

下载: 全尺寸图片幻灯片

表 1 基于Laennec膜三维重建的100例肝蒂长度和外径

Table 1. Three-dimensional reconstruction-based measure‑ments of hepatic pedicle length and outer diameter in 100 cases using Laennec’s membrane

项目	数值（mm）	标准误
主干
外径	24.10±6.16	0.69
左支主干
长度	20.59±6.38	0.72
外径	18.04±4.48	0.50
右支主干
长度	21.99±7.98	0.97
外径	21.18±4.23	0.52
右前主干
长度	13.20±5.43	0.68
外径	15.25±3.39	0.39
右后主干
长度	12.03±4.13	0.63
外径	13.01±2.80	0.40

下载: 导出CSV

表 2 基于Laennec膜三维重建的100例肝蒂角度

Table 2. Hepatic pedicle angle measurements based on Laennec’s membrane 3D reconstruction in 100 cases

项目	数值	标准误
ALM	114.35°±22.91°	2.61
ARM	140.81°±16.72°	2.49
ALR	142.63°±15.66°	1.89
注：ALM，肝蒂与左主干夹角；ARM，肝蒂与右主干夹角；ALR，左右主支夹角。

下载: 导出CSV

表 3 两组患者术中的统计结果对比

Table 3. Comparison of intraoperative outcomes between the two groups

项目	器械组（n=15）	对照组（n=15）	统计值	P值
肝蒂处理时间（min）	14.10±1.30	17.50±2.00	t=-5.620	0.001
手术时间（min）	217.00±28.28	241.87±19.49	t=-2.804	0.009
出血量（mL）	333.30±97.59	353.30±99.04	t=-0.557	0.582
胆道损伤［例（%）］	0（0）	3（20）		0.031

下载: 导出CSV
