B型尼曼-皮克病及其肝脏受累的异质性表现1例报告

阳乔; 沈轶; 史悦; 王进; 吕芳芳

doi:10.12449/JCH240221

B型尼曼-皮克病及其肝脏受累的异质性表现1例报告

DOI: 10.12449/JCH240221

阳乔^{1a, 2},
沈轶^1b,
史悦^1c,
王进^1c,
吕芳芳^1a, , ,

1a.
浙江大学医学院附属邵逸夫医院肝病感染科，杭州 310016
1b.
浙江大学医学院附属邵逸夫医院生物医学研究中心，杭州 310016
1c.
浙江大学医学院附属邵逸夫医院病理科，杭州 310016
2.
浙江大学医学院附属邵逸夫医院新疆兵团阿拉尔医院感染科，新疆阿拉尔 843399

基金项目:

浙江省自然科学基金 (LY21H030011);

浙江省医药卫生科技青年创新人才支持计划项目 (2022RC196)

利益冲突声明：本文不存在任何利益冲突。

作者贡献声明：阳乔负责病例收集，撰写论文；沈轶负责信息收集，文献检索；史悦、王进负责数据和病理图谱收集；吕芳芳负责诊治策略和论文审阅及修改。

详细信息

通信作者:
吕芳芳， lvfangfang@zju.edu.cn （ORCID： 0000-0001-8573-350X）

计量
- 文章访问数: 330
- HTML全文浏览量: 105
- PDF下载量: 74
- 被引次数: 0
出版历程
- 收稿日期: 2023-05-28
- 录用日期: 2023-08-01
- 出版日期: 2024-02-19

Niemann-Pick disease type B and heterogeneous manifestations of its liver involvement： A case report

Qiao YANG^{1a, 2},
Yi SHEN^1b,
Yue SHI^1c,
Jin WANG^1c,
Fangfang LYU^{1a
, ,
,}

1a.
Department of Infectious Diseases，Sir Run Run Shaw Hospital，Zhejiang University School of Medicine，Hangzhou 310016，China
1b.
Biomedical Research Center，Sir Run Run Shaw Hospital，Zhejiang University School of Medicine，Hangzhou 310016，China
1c.
Department of Pathology，Sir Run Run Shaw Hospital，Zhejiang University School of Medicine，Hangzhou 310016，China
2.
Department of Infectious Diseases，Sir Run Run Shaw Alar Hospital，Zhejiang University School of Medicine，Alar，Xinjiang 843399，China

Research funding:

Zhejiang Provincial Natural Science Foundation of China (LY21H030011);

Zhejiang Medical Health Science and Technology Program-Young Innovative Support Program (2022RC196)

More Information

Corresponding author: LYU Fangfang， lvfangfang@zju.edu.cn （ORCID： 0000-0001-8573-350X）

摘要

摘要: 本文报道以“肝脾肿大待查”为主诉，经各项检查确诊为B型尼曼-皮克病的案例，并通过文献复习，总结B型尼曼-皮克病肝脏受累的异质性表现，旨在提高疑难罕见肝脏疾病的临床诊治水平。
- 尼曼-皮克病， B型 /
- 肝肿大 /
- 遗传性疾病，先天性 /
- 基因检测
Abstract: This article reports a case with the chief complaint of “hepatosplenomegaly to be investigated” and a confirmed diagnosis of Niemann-Pick disease type B after various tests， and a literature review was conducted to summarize the heterogeneous manifestations of liver involvement in type B Niemann-Pick disease， in order to improve the clinical management of difficult and rare liver diseases.
- Niemann-Pick Disease， Type B /
- Hepatomegaly /
- Genetic Diseases， Inborn /
- Genetic Testing

HTML全文

图 1 肺部CT

注：两肺未见活动性或间质性病变。

Figure 1. Lung CT scan

下载: 全尺寸图片幻灯片

图 2 上腹部CT平扫

注： a，脾脏肿大；b，肝脏肿大。

Figure 2. Upper abdominal CT scan

下载: 全尺寸图片幻灯片

图 3 腹部增强CT+门静脉CT血管造影

注： a，门静脉扩张，门静脉高压；b，脾静脉增宽迂曲，脾肿大。

Figure 3. Upper abdominal CT enhancement and enhanced CT of portal vein

下载: 全尺寸图片幻灯片

图 4 骨髓穿刺病理组织学检查

注；a，骨髓组织增生活跃伴多灶泡沫细胞（尼曼-皮克细胞），箭头所示细胞体积大、胞质淡染且含吞噬颗粒（HE染色，×100）；b，骨髓组织CD68阳性细胞大量表达，提示为吞噬脂质的尼曼-皮克细胞（DAB染色，×400）。

Figure 4. Bone marrow aspiration and biopsy

下载: 全尺寸图片幻灯片

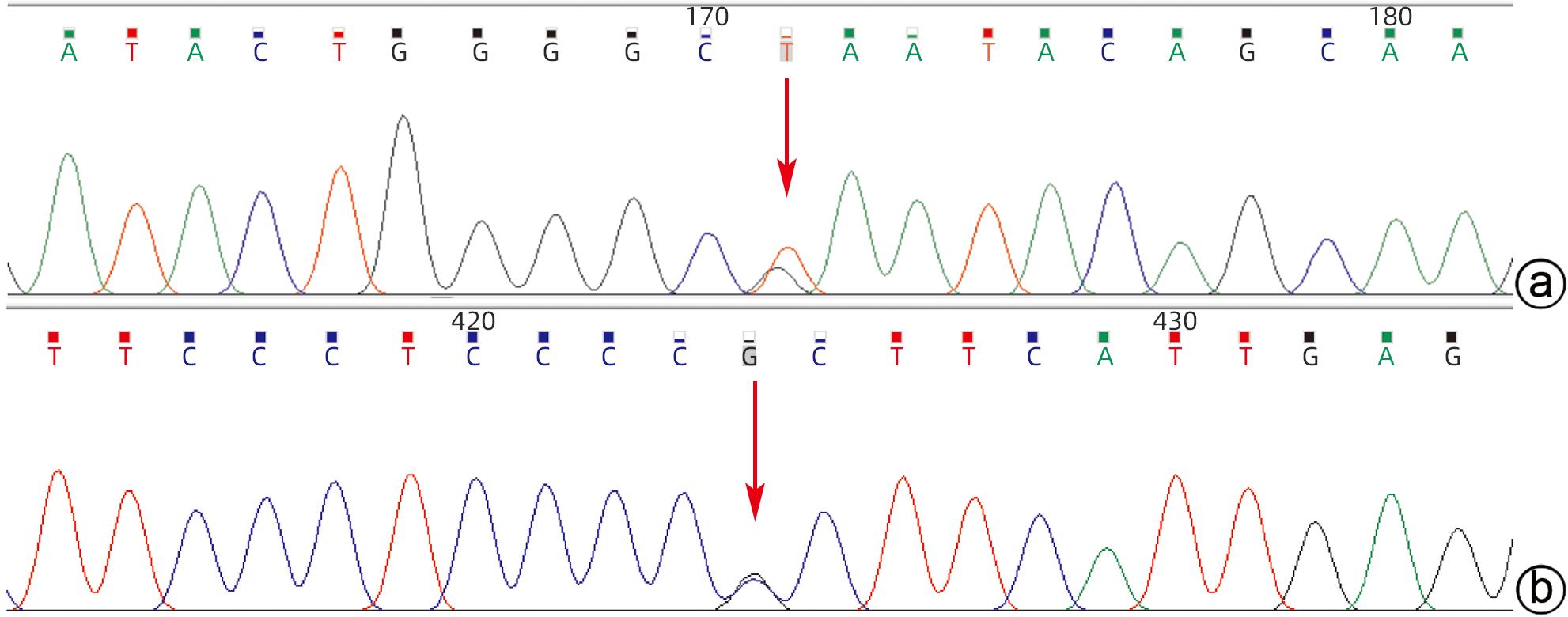

图 5 患者遗传病基因检测结果

注： a，SMPD1_ex2 c.742G>T（p.Glu248*）受检者Sanger测序验证图（正向，检出），NCBI参考序列ATACTGGGGCGAATACAGCAA；b，SMPD1_ex2 c.995C>G（p.Pro332Arg）受检者Sanger测序验证图（正向，检出），NCBI参考序列TTCCCTCCCCCCTTCATTGAG。

Figure 5. Ggenetic testing in the patient

下载: 全尺寸图片幻灯片

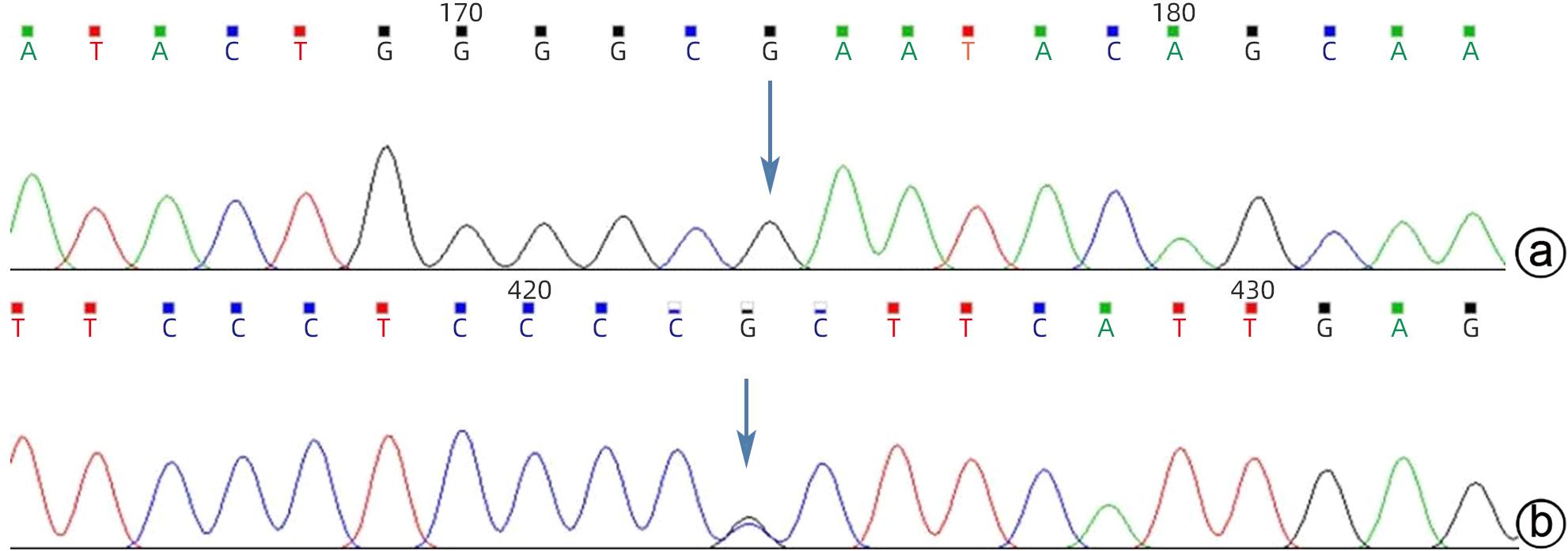

图 6 患者母亲固定位点Sanger测序的验证报告

注： a，NM_000543.4（SMPD1）c.742G>T（p.Glu248*）Sanger测序验证图（正向，检出），NCBI参考序列ATACTGGGGCGAATACAGCAA；b，NM_000543.4（SMPD1）c.995C>G（p.Pro332Arg）Sanger测序验证图（正向，未检出），NCBI参考序列TTCCCTCCCCCCTTCATTGAG。

Figure 6. Validation report of Sanger sequencing of the patient’s mother

下载: 全尺寸图片幻灯片

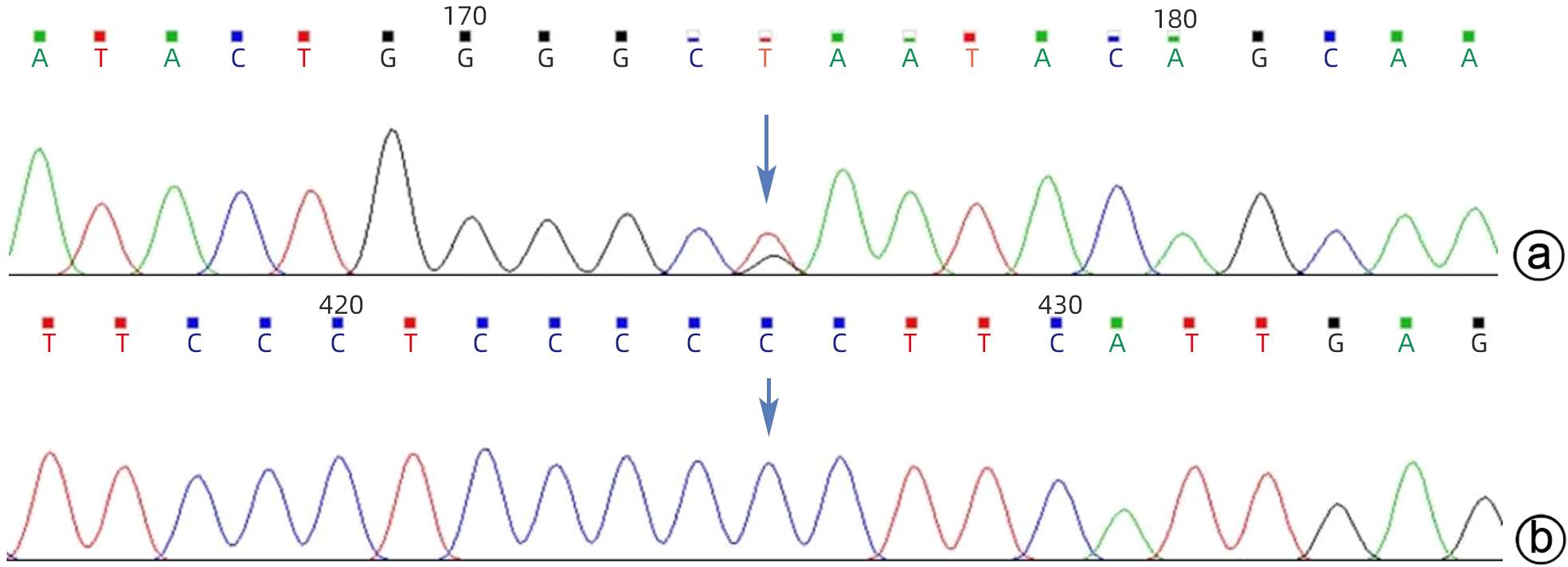

图 7 患者父亲固定位点Sanger测序的验证报告

注： a，NM_000543.4（SMPD1）c.742G>T（p.Glu248*）Sanger测序验证图（正向，未检出），NCBI参考序列ATACTGGGGCGAATACAGCAA；b，NM_000543.4（SMPD1）c.995C>G（p.Pro332Arg）Sanger测序验证图（正向，检出），NCBI参考序列TTCCCTCCCCCCTTCATTGAG。

Figure 7. Validation report of Sanger sequencing of the patient’s father

下载: 全尺寸图片幻灯片

参考文献(23)

[1]	PINTO C, SOUSA DA, GHILAS V, et al. Acid sphingomyelinase deficiency: A clinical and immunological perspective[J]. Int J Mol Sci, 2021, 22( 23): 12870. DOI: 10.3390/ijms222312870.
[2]	SCHUCHMAN EH, DESNICK RJ. Types A and B Niemann-Pick disease[J]. Mol Genet Metab, 2017, 120( 1-2): 27- 33. DOI: 10.1016/j.ymgme.2016.12.008.
[3]	VÉLEZ PINOS PJ, SAAVEDRA PALACIOS MS, COLINA ARTEAGA PA, et al. Niemann-Pick disease: A case report and literature review[J]. Cureus, 2023, 15( 1): e33534. DOI: 10.7759/cureus.33534.
[4]	COLOGNA SM, PATHMASIRI KC, PERGANDE MR, et al. Alterations in cholesterol and phosphoinositides levels in the intracellular cholesterol trafficking disorder NPC[J]. Adv Exp Med Biol, 2023, 1422: 143- 165. DOI: 10.1007/978-3-031-21547-6_5.
[5]	ZHANG HW, WANG Y, GONG ZW, et al. Identification of a distinct mutation spectrum in the SMPD1 gene of Chinese patients with acid sphingomyelinase-deficient Niemann-Pick disease[J]. Orphanet J Rare Dis, 2013, 8: 15. DOI: 10.1186/1750-1172-8-15.
[6]	LAN MY, LIN SJ, CHEN YF, et al. A novel missense mutation of the SMPD1 gene in a Taiwanese patient with type B Niemann-Pick disease[J]. Ann Hematol, 2009, 88( 7): 695- 697. DOI: 10.1007/s00277-008-0648-8.
[7]	CHEEMA HA, RASOOL IG, ANJUM MN, et al. Mutational spectrum of SMPD1 gene in Pakistani Niemann-Pick disease patients[J]. Pak J Med Sci, 2020, 36( 3): 479- 484. DOI: 10.12669/pjms.36.3.467.
[8]	WASSERSTEIN MP, DESNICK RJ, SCHUCHMAN EH, et al. The natural history of type B Niemann-Pick disease: Results from a 10-year longitudinal study[J]. Pediatrics, 2004, 114( 6): e672- e677. DOI: 10.1542/peds.2004-0887.
[9]	LIPIŃSKI P, KUCHAR L, ZAKHAROVA EY, et al. Chronic visceral acid sphingomyelinase deficiency(Niemann-Pick disease type B) in 16 Polish patients: Long-term follow-up[J]. Orphanet J Rare Dis, 2019, 14( 1): 55. DOI: 10.1186/s13023-019-1029-1.
[10]	MCGOVERN MM, POHL-WORGALL T, DECKELBAUM RJ, et al. Lipid abnormalities in children with types A and B Niemann Pick disease[J]. J Pediatr, 2004, 145( 1): 77- 81. DOI: 10.1016/j.jpeds.2004.02.048.
[11]	CASSIMAN D, PACKMAN S, BEMBI B, et al. Cause of death in patients with chronic visceral and chronic neurovisceral acid sphingomyelinase deficiency(Niemann-Pick disease type B and B variant): Literature review and report of new cases[J]. Mol Genet Metab, 2016, 118( 3): 206- 213. DOI: 10.1016/j.ymgme.2016.05.001.
[12]	LAN MY, KANG TW, LAN SC, et al. Spontaneous splenic rupture as the first clinical manifestation of Niemann-Pick disease type B: A case report and review of the literature[J]. J Clin Lipidol, 2022, 16( 4): 434- 437. DOI: 10.1016/j.jacl.2022.06.002.
[13]	MCGOVERN MM, WASSERSTEIN MP, GIUGLIANI R, et al. A prospective, cross-sectional survey study of the natural history of Niemann-Pick disease type B[J]. Pediatrics, 2008, 122( 2): e341- e349. DOI: 10.1542/peds.2007-3016.
[14]	ADIN ME, ONDER H, ALABALıK U. Echogenic splenic lesions in a child with type B Niemann-Pick disease[J]. J Clin Ultrasound, 2013, 41( Suppl 1): 32- 34. DOI: 10.1002/jcu.22009.
[15]	THURBERG BL, WASSERSTEIN MP, SCHIANO T, et al. Liver and skin histopathology in adults with acid sphingomyelinase deficiency(Niemann-Pick disease type B)[J]. Am J Surg Pathol, 2012, 36( 8): 1234- 1246. DOI: 10.1097/PAS.0b013e31825793ff.
[16]	MOLES A, TARRATS N, FERNÁNDEZ-CHECA JC, et al. Cathepsin B overexpression due to acid sphingomyelinase ablation promotes liver fibrosis in Niemann-Pick disease[J]. J Biol Chem, 2012, 287( 2): 1178- 1188. DOI: 10.1074/jbc.M111.272393.
[17]	WANG RS, QIN ZY, HUANG L, et al. SMPD1 expression profile and mutation landscape help decipher genotype-phenotype association and precision diagnosis for acid sphingomyelinase deficiency[J]. Hereditas, 2023, 160( 1): 11. DOI: 10.1186/s41065-023-00272-1.
[18]	PATTERSON MC, DI BISCEGLIE AM, HIGGINS JJ, et al. The effect of cholesterol-lowering agents on hepatic and plasma cholesterol in Niemann-Pick disease type C[J]. Neurology, 1993, 43( 1): 61- 64. DOI: 10.1212/wnl.43.1_part_1.61.
[19]	WASSERSTEIN MP, DIAZ GA, LACHMANN RH, et al. Olipudase Alfa for treatment of acid sphingomyelinase deficiency(ASMD): Safety and efficacy in adults treated for 30 months[J]. J Inherit Metab Dis, 2018, 41( 5): 829- 838. DOI: 10.1007/s10545-017-0123-6.
[20]	MIRANDA SR, ERLICH S, FRIEDRICH VL Jr, et al. Hematopoietic stem cell gene therapy leads to marked visceral organ improvements and a delayed onset of neurological abnormalities in the acid sphingomyelinase deficient mouse model of Niemann-Pick disease[J]. Gene Ther, 2000, 7( 20): 1768- 1776. DOI: 10.1038/sj.gt.3301300.
[21]	LIU Y, LUO Y, XIA L, et al. The effects of liver transplantation in children with niemann-pick disease type B[J]. Liver Transpl, 2019, 25( 8): 1233- 1240. DOI: 10.1002/lt.25457.
[22]	GASPERINI S, D’ANTIGA L. Liver transplantation for lysosomal storage disorders: A novel option to pick[J]. Liver Transpl, 2019, 25( 8): 1140- 1141. DOI: 10.1002/lt.25578.
[23]	GEBERHIWOT T, WASSERSTEIN M, WANNINAYAKE S, et al. Consensus clinical management guidelines for acid sphingomyelinase deficiency(Niemann-Pick disease types A, B and A/B)[J]. Orphanet J Rare Dis, 2023, 18( 1): 85. DOI: 10.1186/s13023-023-02686-6.
